Indoor P5 SMD2121 LED Display, 5mm Indoor advertising P2 P2.5 P3 P3.91 P4 P5 church led video wall screen LED panel
Features
1. Gorgeous picture: non-reflective screen for better viewing experience.
2. Perfect image: Our products use LED-specific IC with high refresh rate and no shadow
3. Light weight: The body is spliced with aluminum profiles, weighing 5-8kg, which is light and corrosion-free.
4. Elegant appearance: We use CNC processing technology to produce standard modules and cabinets, which can be easily assembled seamlessly.
5. Standard size: We use professional fasteners and standard modular panels that can be easily snapped together.
6. Easy to install: The back module is easier to connect.
7. Energy saving: Our products have low energy consumption and high efficiency.
Specification
| Pixel Pitch | 5 |
| Physical Density | 40,000 |
| LED Configuration | 1RGB |
| LED type | SMD3528 |
| Module Size | 320×160 |
| Module Resolution | 64×32 |
| Module Power Consumption | 20 |
| Driving Mode | Constant Current Drive |
| Scanning Mode | 1/16 |

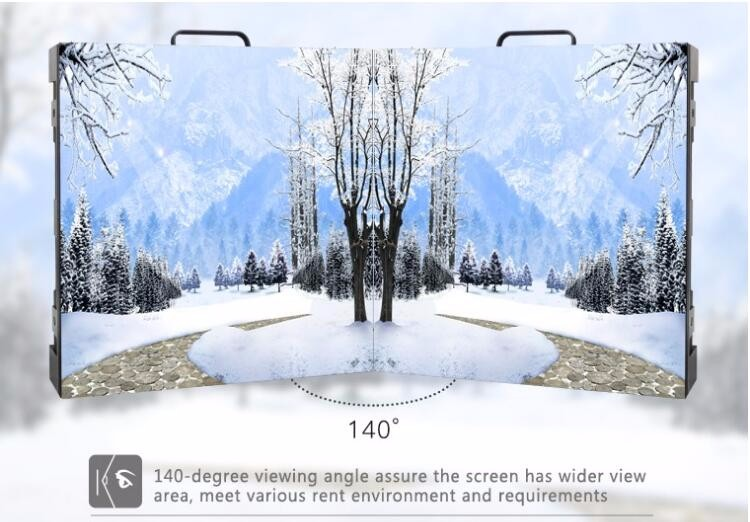

| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 140 |
| Brightness | ≥2200 |
| Grey Scale | 16bit |
| Refresh Rate | ≥3480 |
| Cabinet Resolution | 128×128 |
| Cabinet Max Consumption | 160 |
| Cabinet Average Power Consumption | 50 |
| Cabinet Size | 640×640 |
| Cabinet Weight | 18 |
| Cabinet Thickness | 75 |
| Cabinet Material | Iron/Aluminum |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Refresh Frame Frequency | ≥60 |
| Protection Level | IP43 |
| Working Environment | Indoor |
| Working Temperature | -40° -+65° |
| Storage Humidity Range | 10%~90% |
| Life Span | 100,000 hours |
Detailed Picture
Successful Case
Hot Sale Model
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During this time, we will replace or repair our goods for free if there is something wrong with them.
2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so on.
2) We can also provide all kinds of certification such as CE, LVD, RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other information such as flight box, structure
F&Q
Why so many clients choose SCXLED?
Our led display has applied many countries in the world. Many countries have our projects.
TOPLED's led display unique advantage
-------service
>Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------price
Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose SCXLED, you choose the cost-effective , high quality and good service.
